Buy Suprema RealScan S60 fingerprint scanner

Suprema RealScan S60

1,400.00

Suprema RealScan S60

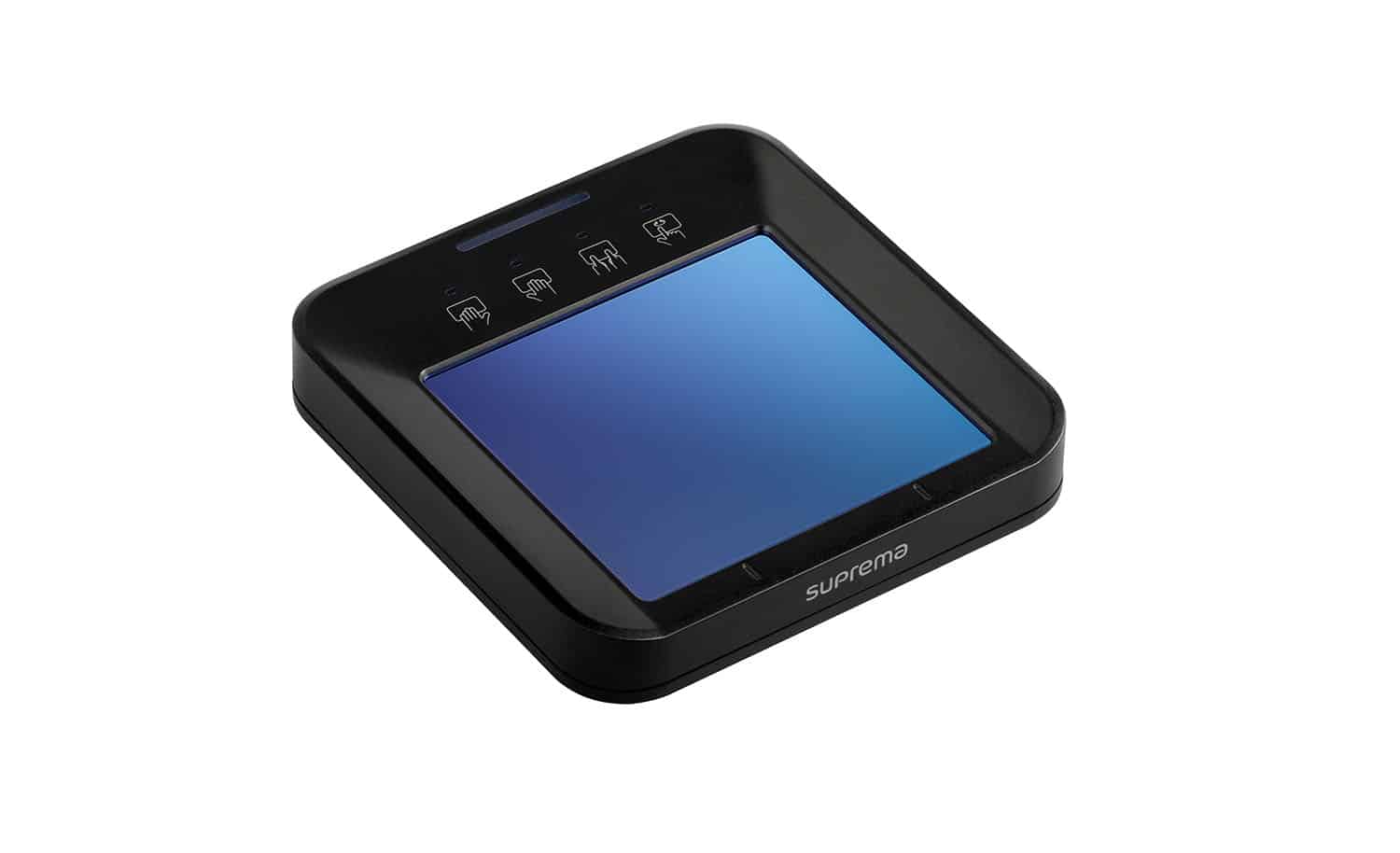

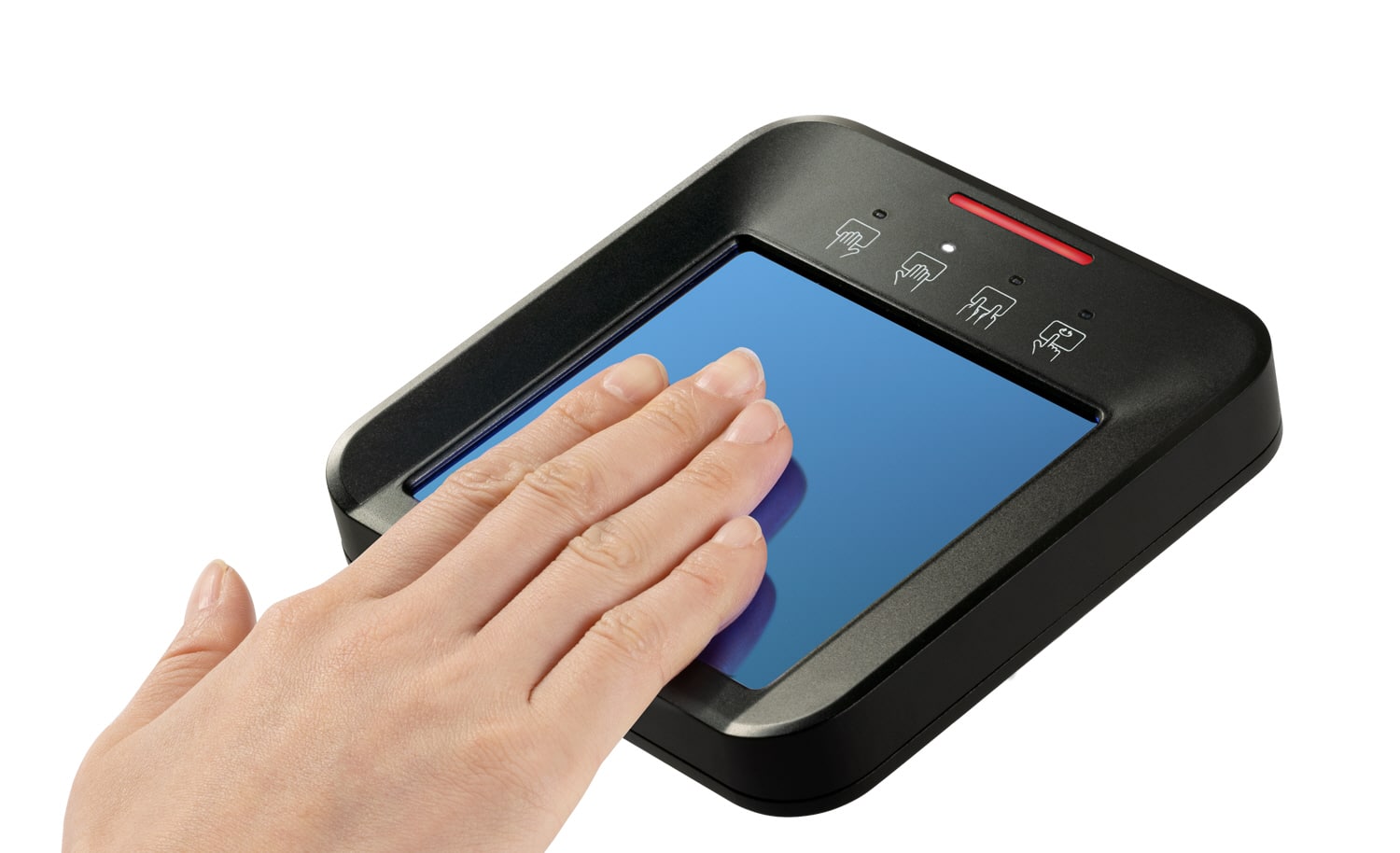

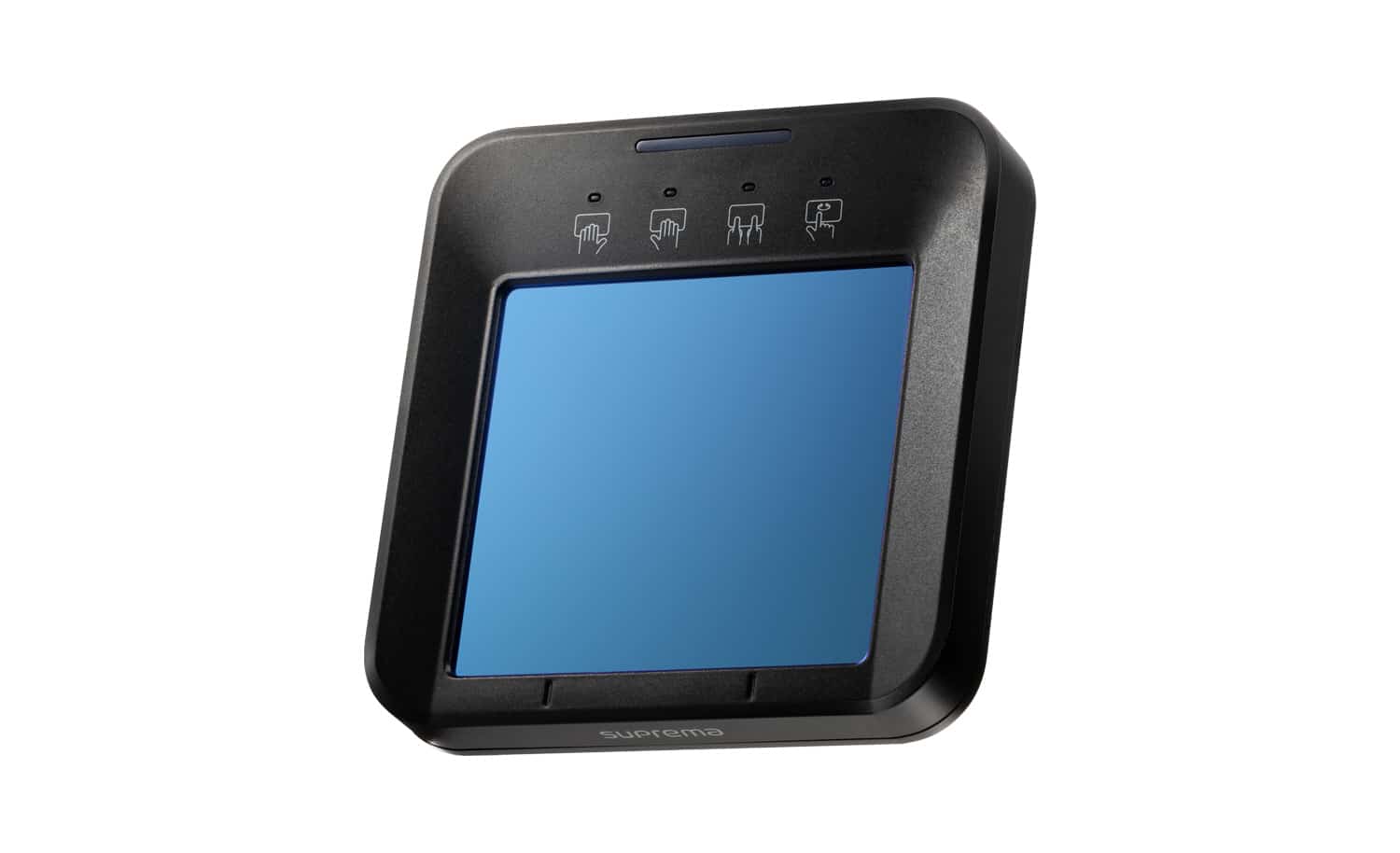

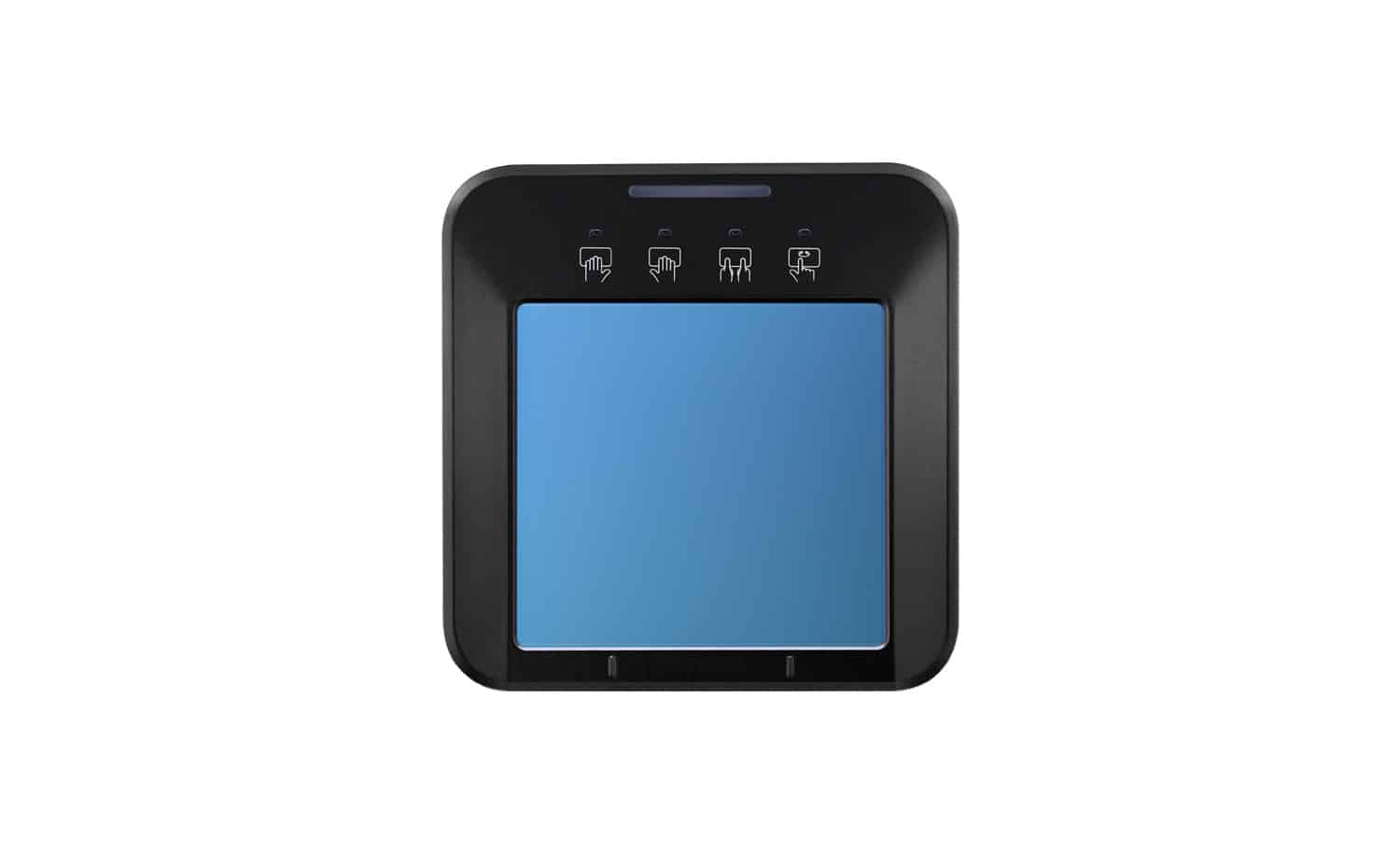

RealScan S60 is the FBI Appendix F certified, Ultra Slim, and Lightweight Fingerprint live scanner. In combination with Suprema ID’s proprietary fingerprint algorithm and an advanced TFT (Thin Film Transistor) – optical technology, RealScan S60M enables capture of the highest fingerprint image quality flat and rolled fingers with little effect from various fingerprint conditions. In addition, Suprema ID’s award-winning fake fingerprint detection algorithm with deep learning technology maximizes the benefit to its customers to distinguish real and fake fingers with excellent accuracy. Its small form factor optimized not only for desktop solutions but also for easy integration into portable devices, provides a significant advantage for customers to maximize the benefit from their product and solution.

Specifications

Fingerprint Type Four Finger Flat / Two Finger Flat / Single Flat & Rolls
Resolution / Gray scale 500 dpi / 256 gray levels
Dimension (W x L x H) 118 x 120 x 19.3 mm (4.64’’ x 4.74’’ x 0.76’’)
102.4 x 112 x 15.9 mm (4.03’’ x 4.40’’ x 0.63’’) – RealScan S60M
Platen Size (W x L) 83.3 x 78.2 mm (3.28’’ x 3.07’’)
Capture Size (W x L) 81.28 x 76.2 mm (3.2’’ x 3.0’’)
Image Size (W x L) Four Finger Flat: 1600 x 1500
Two Finger Flat: 900 x 900
Single Flat & Rolls: 800 x 750
Image Quality Standards FBI IQS Appendix F
Ingress Protection IP65 (IP65-rated top surface)
Operating Temperature -10℃ ~ + 55℃
Operating Humidity From 10 to 90%, non-condensing
Power Supply USB Host
Weight 220g / 189g (RealScan S60M)
Interface USB 2.0 High Speed
Operating Systems Windows: 7, 8, 8.1, 10 32 / 64bit
Linux: Ubuntu, Debian, Fedora, Cent OS 32 / 64bit
Android 5.0+ (Custom 4.0)
Certificate FBI, KC, CE, FCC, UL, IEC62471, WEEE, RoHS, REACH, WHQL, USB-IF
Sound Interface Buzzer
Usage Environment Indoor
Brochure Download
