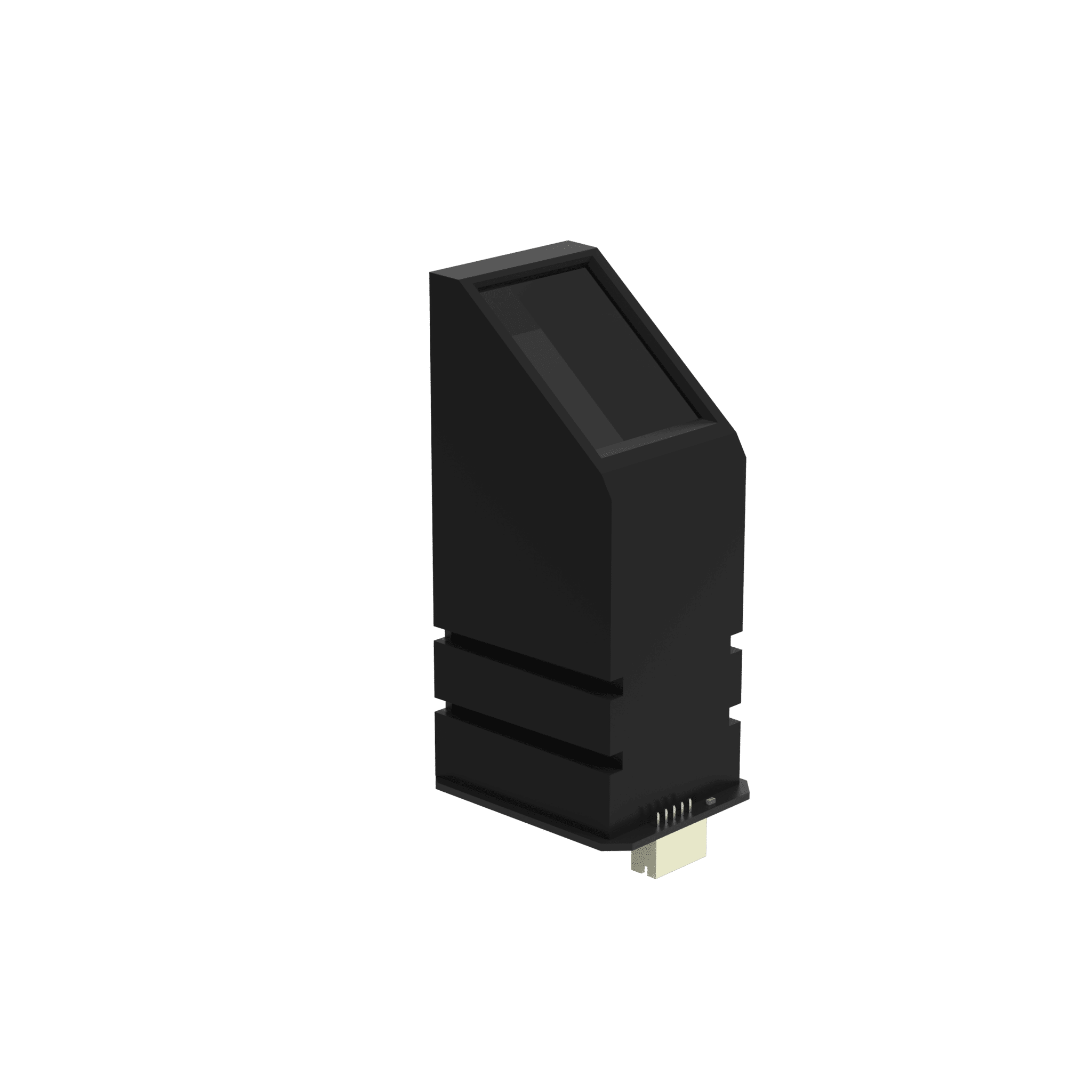

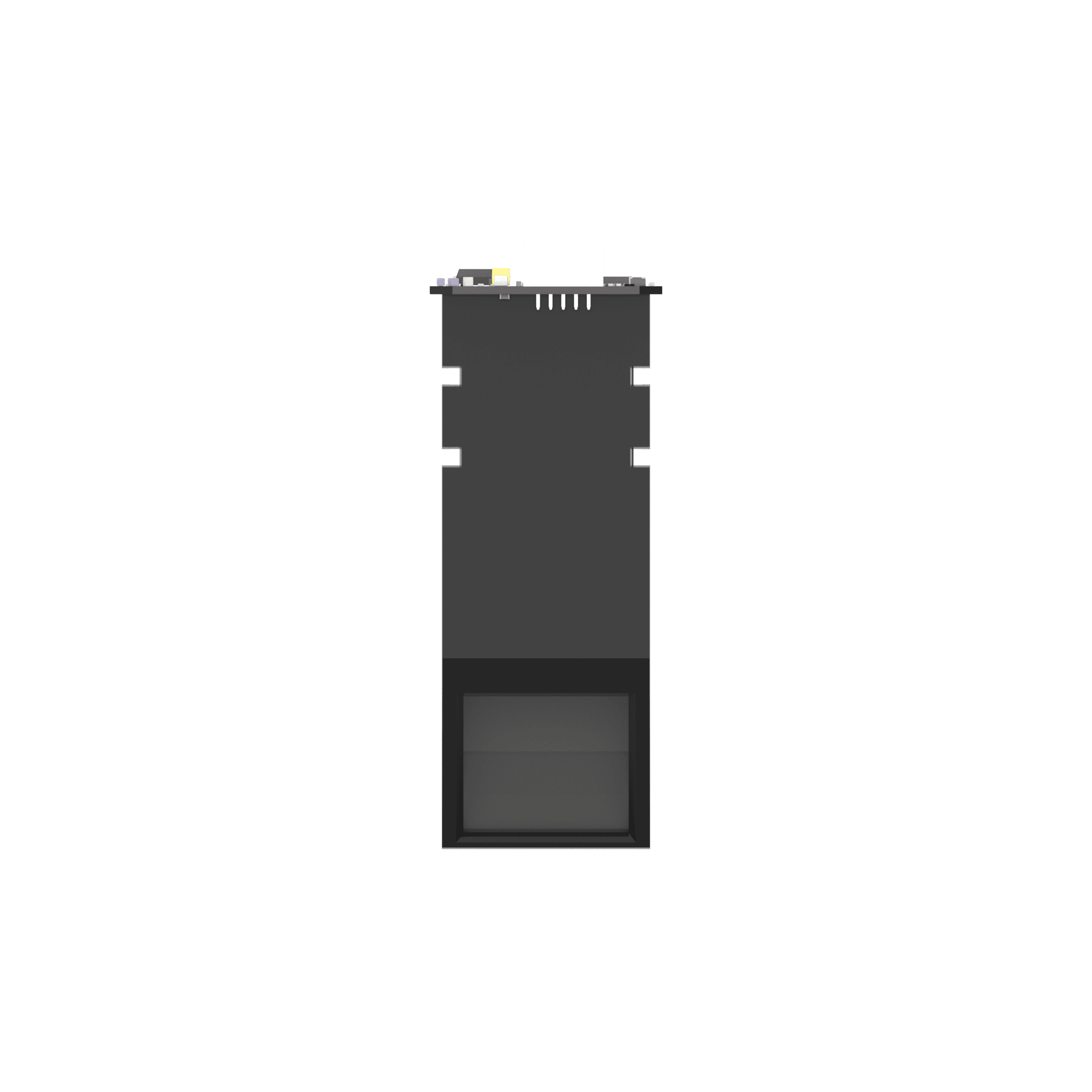

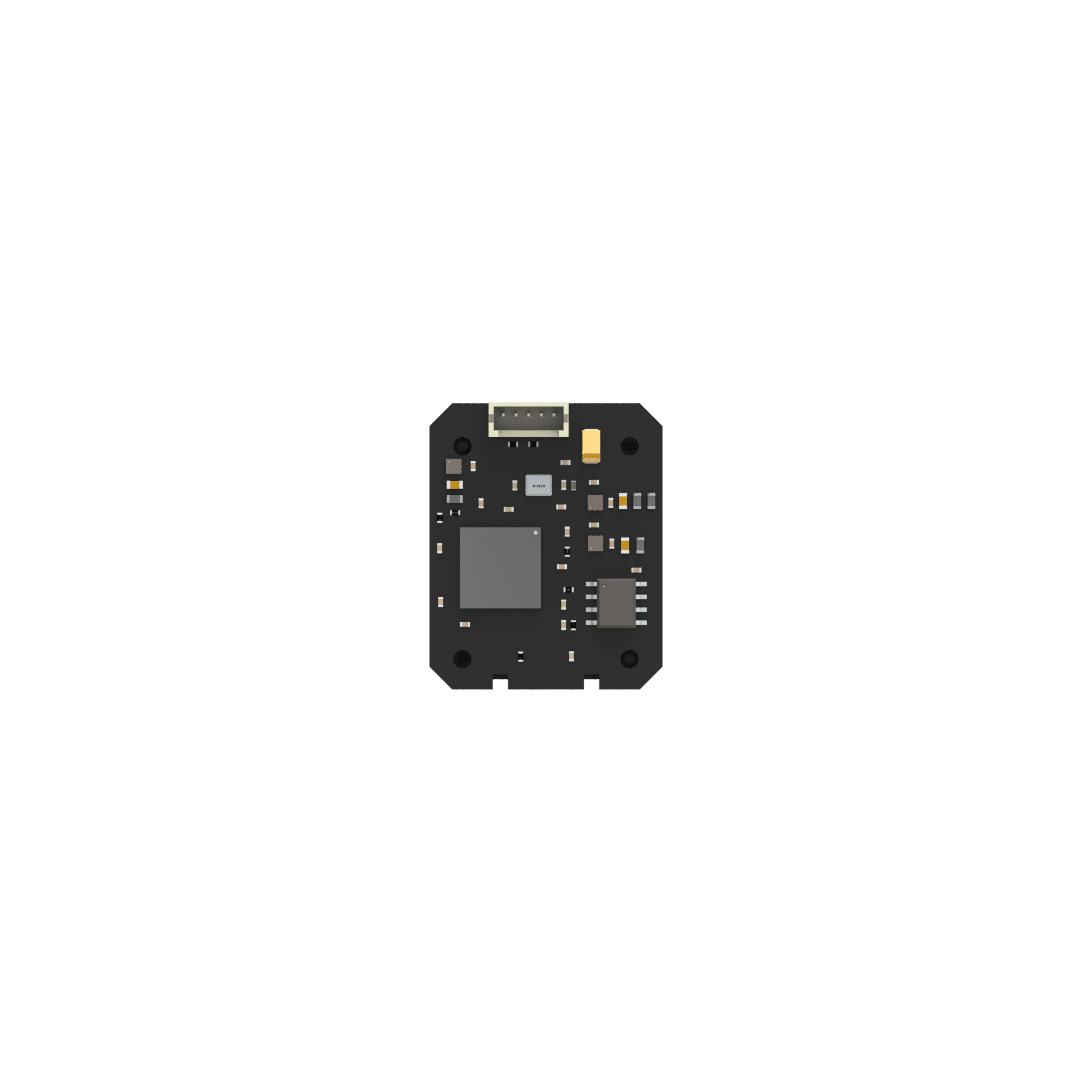

Mantra MFS500 FAP10 Optical single fingerprint module


The Mantra MFS500 is a high-quality fingerprint scanner equipped with an optical scratch-free sensor for efficient recognition of poor quality fingerprints. It is an accurate, safe, and reliable device for identifying and verifying individuals, eliminating the need for passwords or PINs. The scanner captures fingerprint images quickly and reliably, making it suitable for identification, verification, and authentication processes.


  • Scratch free sensor surface
  • Latent Finger detection
  • High speed USB 2.0 interface with plug and play
  • Lowest FAR and FRR
  • 500 DPI optical fingerprint sensor
  • Support 180 Degree rotation Authentication
  • MINEX Compliance extractor
  • Auto Finger Detection
  • Supports Window, Android & Linux System
  • Connector Type: FPC or Wire to board



Sensor size

15 mm x 18 mm

Image size

296 x 354 pixels


USB 2.0

Supported OS

, ,



    Mantra MFS500 FAP10 Optical single fingerprint module
