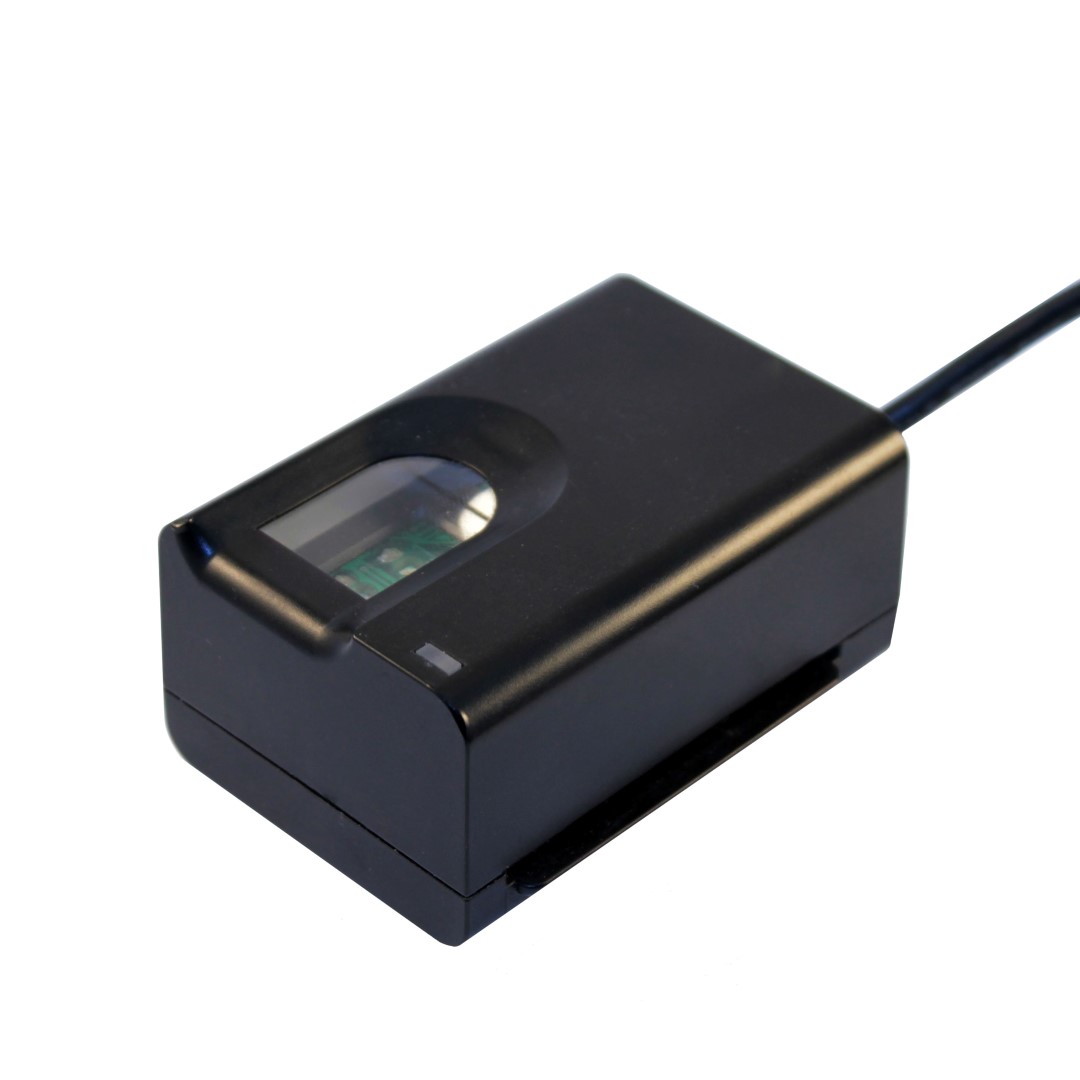

Futronic’s FS82 USB 2.0 Fingerprint Smart Card Scanner is a combination of FS80H fingerprint scanner hardware and ISO7816 smart card reader.
The fingerprint and smart card readers can be used together for two-factor authentication. A fingerprint template is stored on smart card and can be compared with a fingerprint scanned with the fingerprint scanner. Also the fingerprint reader and smartcard reader can be used separately.
The fingerprint reader part features precise optics and infra-red illumination that allow to scan wet, dry, blurred and other problematic fingerprints reliably.
Live Finger Detection (LFD) is built in into FS82. The LFD allows to reject fake fingers made from silicone rubber, play-doh or other materials.
FS82 has rugged fingerprint sensor with a crown glass scanning window (14 mm thickness).
The smart card reader accepts smartcards that are compliant with ISO/IEC 7816 standard. The accepted smart card voltages are 1.8V, 3V and 5V.
See also FS26 fingerprint and MIFARE card reader.
Futronic FS81 is an OEM module version of FS80 fingerprint scanner. The module includes a CMOS sensor with precise optical system for fingerprint capture. The optical system allows to capture fingerprint images without any distortions.
Problematic fingerprints (wet, dry or blurred) can be reliably scanned with the module as it uses infra-red LEDs for finger illumination. Image quality optimization is obtained by automatical adjustment of illumination intensity for each finger.
FS81 module has rugged sensor with a crown glass scanning window (14 mm thickness).
MultiScan527 from Green Bit is an optical palm print and fingerprint reader. The scanner is able to acquire half-palm images (upper and lower), four-finger slaps, dual thumbs, as well as single rolled and flat fingerprints.
The device is certified by the FBI as compliant with FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F and is also compliant with Appendix P requirements.
The manufacturer specifies, that the MultiScan527 can be optionally equipped with additional accessories like smart card / NFC reader, foot pedal etc. Also, an OEM scanner module is available for embedding into custom solutions.
Suprema BioMini Plus 2 has been designed to provide high level security solution with its proven reliability of FBI-PIV & STQC certifications. BioMini Plus 2 features industry’s most advanced MDR(multi dynamic range) technology to capture exceptional image quality even under extreme lighting conditions (operates under direct sunlight up to 100,000 LUX).
The scanner also features cutting-edge live fingerprint detection (LFD) technology for improved security against spoofing, and the latest version of multi award-winning Suprema algorithm for better performance.
